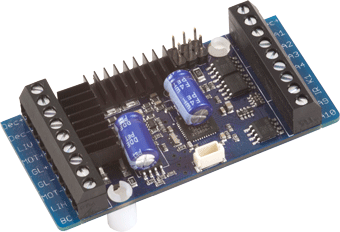

Massoth 8153101 XXL Mk2 10 Amp Decoder

Massoth 8153101 XXL Mk2 10 Amp Decoder. This is the decoder with the WOW-factor! Completely new developed and even more powerful XXL II Loco Decoder with up to 8 amps motor current and 10 amps total current for large locomotives with up to 4 motors. Highlights: New Function Mapping F0-F127 12 Function Outputs 2 Servo Controls Bus Connection for SUSI Overload and temperature protection for motor and function outputs. Updateable The eMOTION XXL high-Amperage loco decoder is second to none with its Amperage/size ratio. The eMOTION XXL is the long sought-after solution to the high Amperage problem in Garden Railroading. 10 Amps peak load and 6 Amps continuous load are the specification highlights of this muscle-decoder. State-of-the-art high-tech hardware renders the use of common huge and bulky heatsinks useless. Features of the eMOTION XXL II Loco Decoder: Loco decoder for digital and analog operation 14, 28 and 128 speed steps 8Amps motor output (10 Amps peak) Bus-Interface for SUSI Pro
