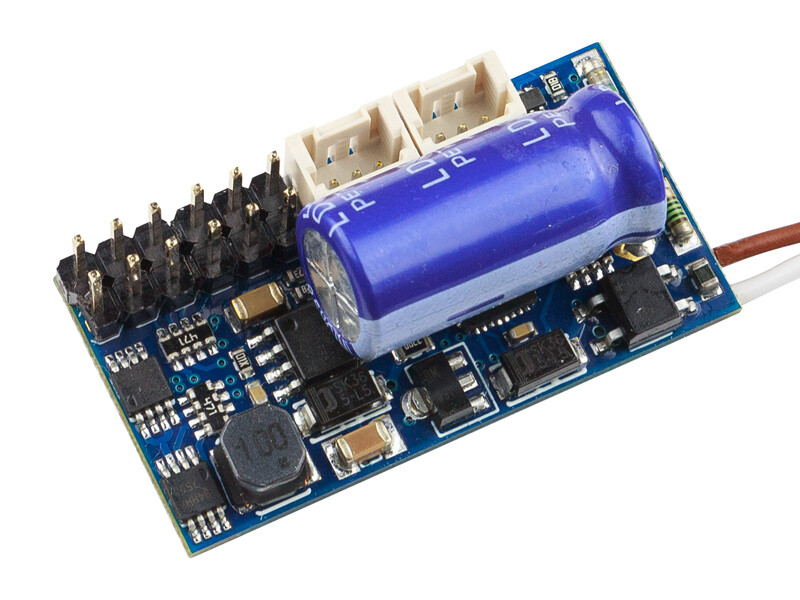

Massoth8152601 10 Channel Function decoder

M-8152601 10 Channel Function decoder Description Equipped with the latest software and ten function outputs, the eMOTION 10FX replaces the previous function decoders (8152001 eMOTION 8FL and 8156501 eMOTION 8FS). With a total current of two amps and a fully integrated servo power supply, the 10FX provides an excellent basis for all conceivable digitizations. It has four servo connections – two of them for precision servos – two amplified outputs with three-pole MiniCT socket for decouplers, pantograph drives etc. and four amplified standard function outputs. An oscillating function for e.g. a steam locomotive bell is also integrated. The function outputs allow the programming of special lighting effects such as boiler fire, neon tube, US Mars-light and many more. A voltage buffer is already integrated to buffer the servo switching peaks. A separate buffer connection for powercaps is also provided. The eMOTION 10FX function decoder appears under the part number of the previously planne
